APPLICATION

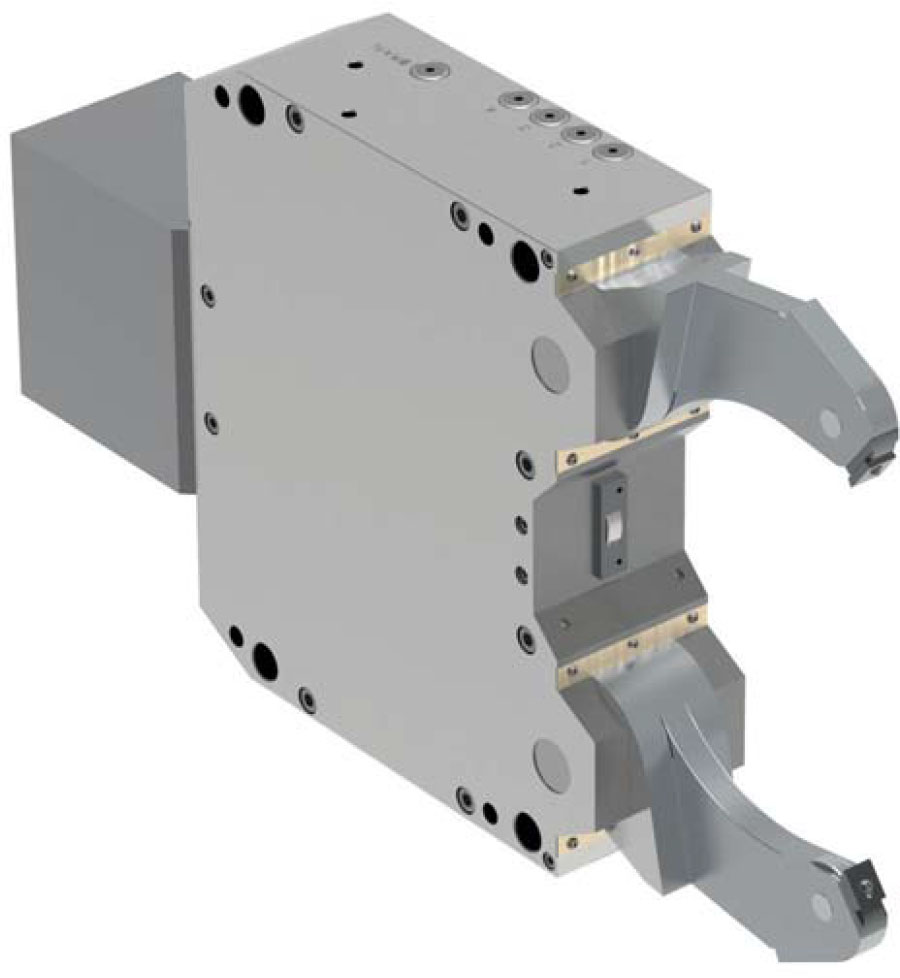

Support of slender shafts for rational turning and end machining optimal for crankshafts and cam shafts.

TYPE

Version with extra slim clamping arms.

CUSTOMER BENEFITS

• Can be flexibly used thanks to support option in narrow in-between spaces
• Large clamping range without change elements
• Operational safety thanks to safety valve, even if pressure drops
• Compact and sturdy design for variable use
• High centering precision and repeatability thanks to proven cam lever system
• Resilient chip protection for optimal workpiece wiping (for version „with chip protection“)
• Purge air connection to prevent penetration of dirt inside the steady rest

TECHNICAL FEATURES

• Central lubrication or manual lubrication possible, depending on the operating conditions
• Standard version available with cylindrical rollers
• Available with and without chip protection
• Prepared for end position check (limit switch not included in the scope of delivery)
