APPLICATION

Optimized for !exible clamping tasks on machining centers and other production systems.
3-sided set-up: bottom side, front side, lateral side.

TYPE

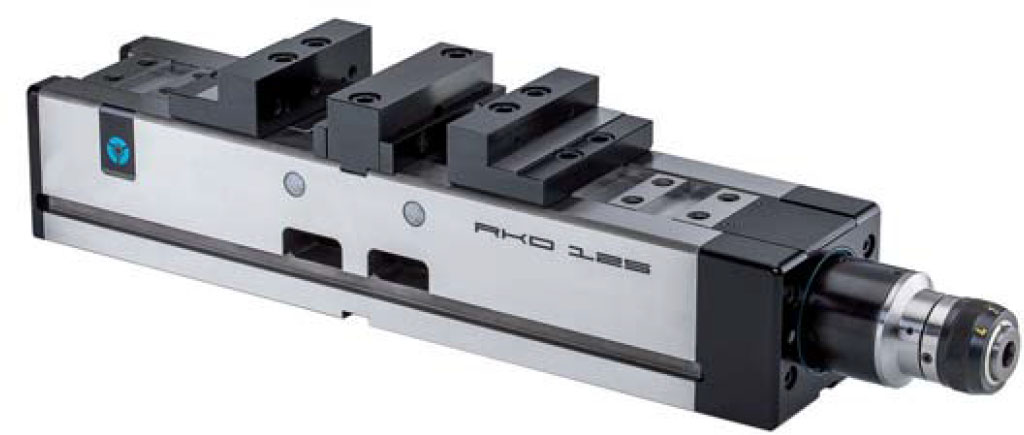

Size 92 - clamping system mechanical-hydraulical with power transmitter, manually operated.
Only approx. 1 1/2 crank turns at max. clamping force.

CUSTOMER BENEFITS

• High repeatability of 0.01 as well as a constant clamping force for every clamping operation
• No overload of the vice at max. clamping force
• Self-locking force transfer
• The clamping thread of the spindle is protected from dirt and chips in every basic jaw position
• With grease nipples installed on both sides, that all guides and the spindle thread can be lubricated quickly and easily

TECHNICAL FEATURES

• Clamping force pre-setting with blocking mechanism
• Double clamping with two moving clamping jaws (left/right thread) and a stationary center jaw
• Steel basic body as well as all guides hardened and ground on all sides.
• Fastening only possible with clamping claws
• Thread for fastening angle drive
