APPLICATION

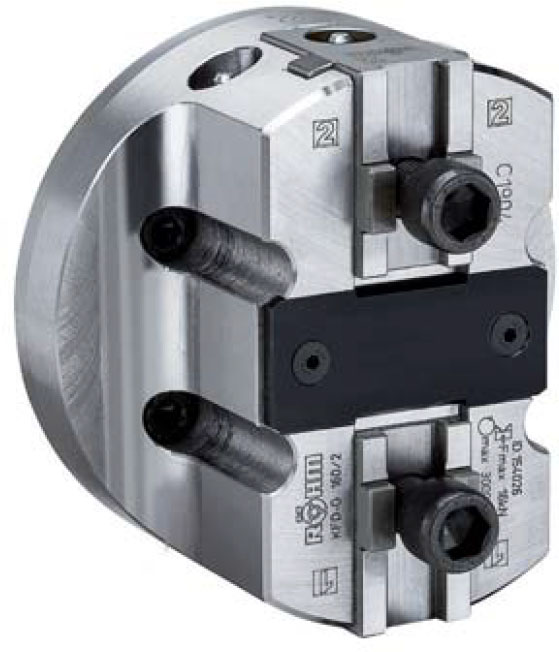

Power chuck without through-hole for clamping workpieces with collars or shoulders (e.g. !ttings), without having to give up high clamping force.

TYPE

Power chuck is available with cylindrical center mount.
2-jaw version with serration 90° (sizes 125 + 160 with tongue and groove).

CUSTOMER BENEFITS

• Minimization of the interference contours of the chuck by means of bevels on the chuck body
• Excessively high jaw stroke for "exible chuck use
• Long service life - Sealed against dirt and water
• High clamping precision thanks to proven wedge hook system

TECHNICAL FEATURES

• Power transmission by means of wedge hook system
• Direct lubrication of base jaws and pistons (4 lubrication points)
• Full steel design
