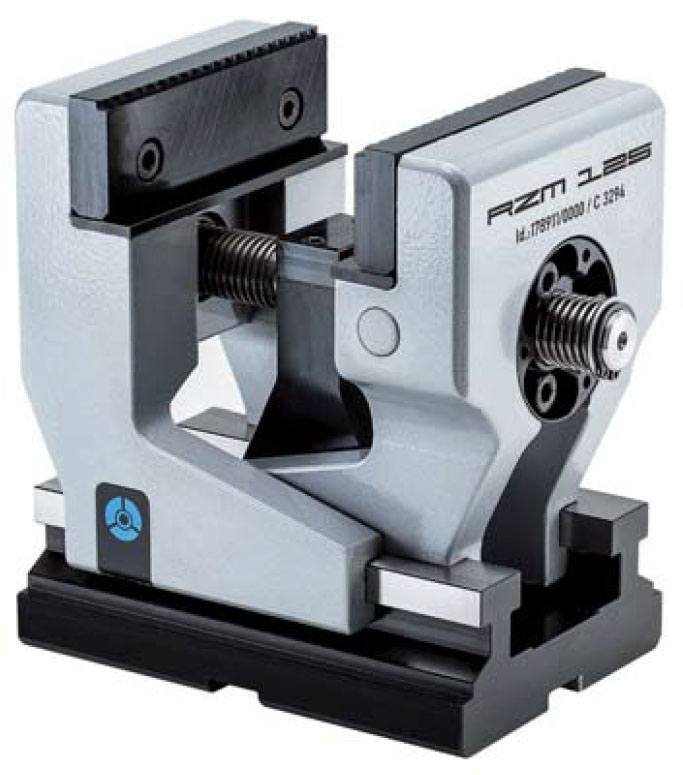

APPLICATION

Optimized for 5-axis machining.

TYPE

Clamping system mechanical without power transmitter, manually operated.
Centric clamping with two moving jaws.

CUSTOMER BENEFITS

• Ideal guidance characteristics of the jaws thanks to patented guidance system
• Very large clamping stroke
• Open design for optimized chip !ow, which permits easy cleaning, after heavy duty machining
• Constant clamping force for every clamping operation and high clamping repeatability when a torque wrench is used
• Optimally suitable for use of SKB clawed jaws. These top jaws can securely clamp raw and sawed parts with a max. strength of up to 900 N/mm2 to a cutting depth of 2.5 mm

TECHNICAL FEATURES

• Steel body hardened and ground
• Highly positioned clamping jaw
• Top spindle lying near the clamping jaws for optimal force transfer
• Long jaw guide and compact design
• Including SKB clawed jaws
• Clamping repeatability 0.02 mm
