APPLICATION

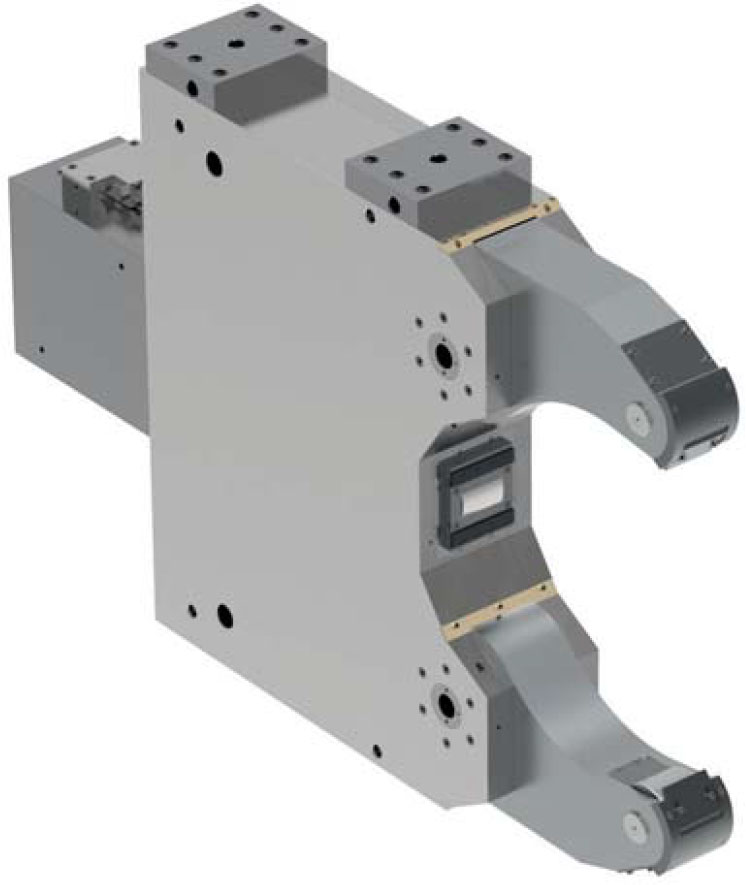

Support of shafts for rational turning and end machining preferential for heavy solid materials.

TYPE

Heavy design for high loads.

CUSTOMER BENEFITS

• Large clamping range without change elements
• Operational safety thanks to safety valve, even if pressure drops
• Sturdy design for variable use - Increased stability thanks to steady rest fastened with clamping arm axis
• High centering precision and repeatability thanks to proven cam lever system
• Resilient chip protection for optimal workpiece wiping (for version „with chip protection“)
• Purge air connection to prevent penetration of dirt inside the steady rest

TECHNICAL FEATURES

• Central lubrication or manual lubrication possible, depending on the operating conditions
• Standard version available with cylindrical or convex rollers
• Available with and without chip protection
• Prepared for end position check (limit switch not included in the scope of delivery)
• Recommendation: Higher precision in case of vertical installation of the steady rest
