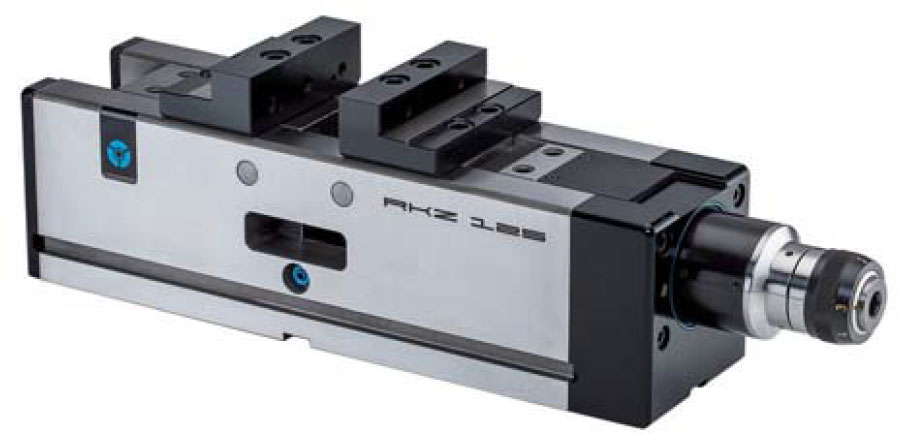

Optimized for 5-axis machining.
Clamping system mechanical-mechanical with power transmitter, manually operated.
Centric clamping with two moving jaws.
- Horizontal, vertical or side mounting
- High repeatability and constant clamping force
- Clamping accuracy at the centre: ± 0.01 - clamping repeatability: 0.01
- The clamping thread of the spindle is protected from dirt and chips in every basic jaw position
- With grease nipples installed on both sides, that all guides and the spindle thread can be lubricated quickly and easily
- Steel body as well as all guides hardened and ground on all sides
- Standard-equipped with stepped top jaws
- Vice fastening only possible with clamping claws
