APPLICATION

Electrical actuation of power chucks/collet chucks with through-hole.

TYPE

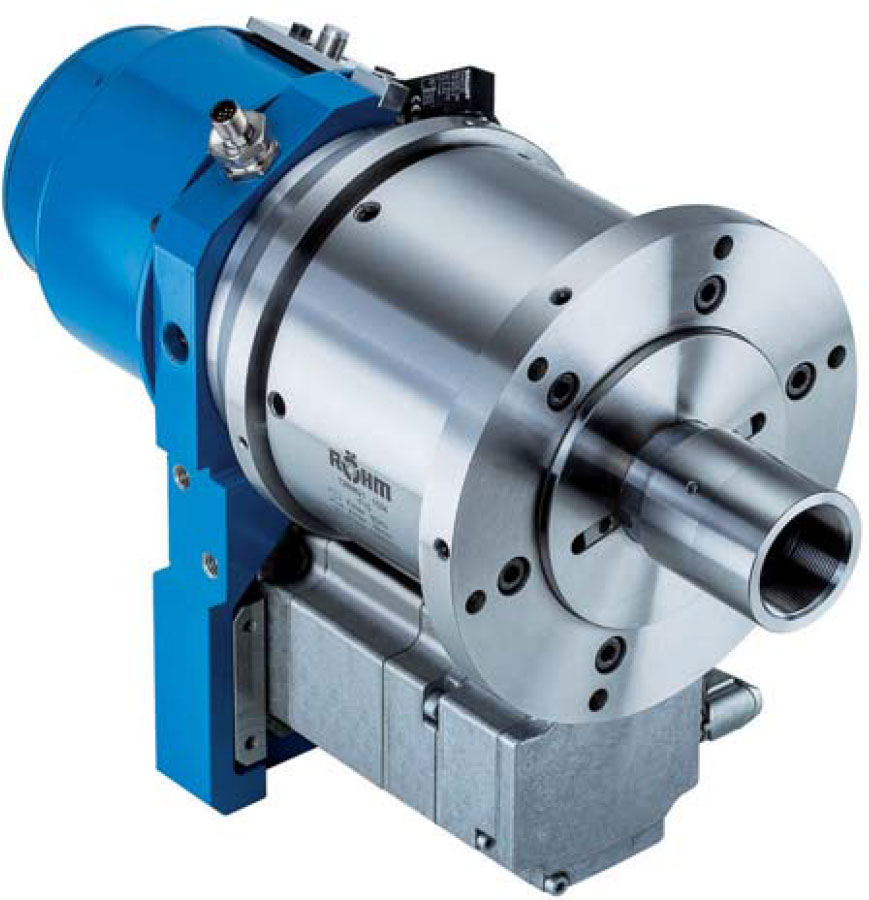

Hollow clamping cylinder with bar through-hole up to 67 mm.

CUSTOMER BENEFITS

• Energy-efficient, since energy is only required during the clamping and unclamping operation
• Flexible use thanks to optimal stroke and force control option (force change, even during rotation)
• High precision thanks to low thermal in"uences
• Increase in operational safety and quality thanks to constant monitoring of the clamping status
• Low-maintenance and environmentally friendly thanks to omission of hydraulic components
• Stroke sensor outside of dirty area to reduce error susceptibility

TECHNICAL FEATURES

• Coolant collector
• Standard spindle fastening: EHS-37 from the rear, EHS-67 from the front (other spindle "anges on request)
• Motor mount must be fastened to the machine

Scope of delivery:
Mechanical electric clamping cylinder, incl. stroke and force sensor, stationary motor mount, incl. connection components of the toothed belt drive

Note:
Servo motor, control unit, servo ampli!er, set of cables and electronic accessories must be ordered separately
