APPLICATION

Pneumatic actuation of power chucks or special clamping devices (full or partial hollow clamping).

TYPE

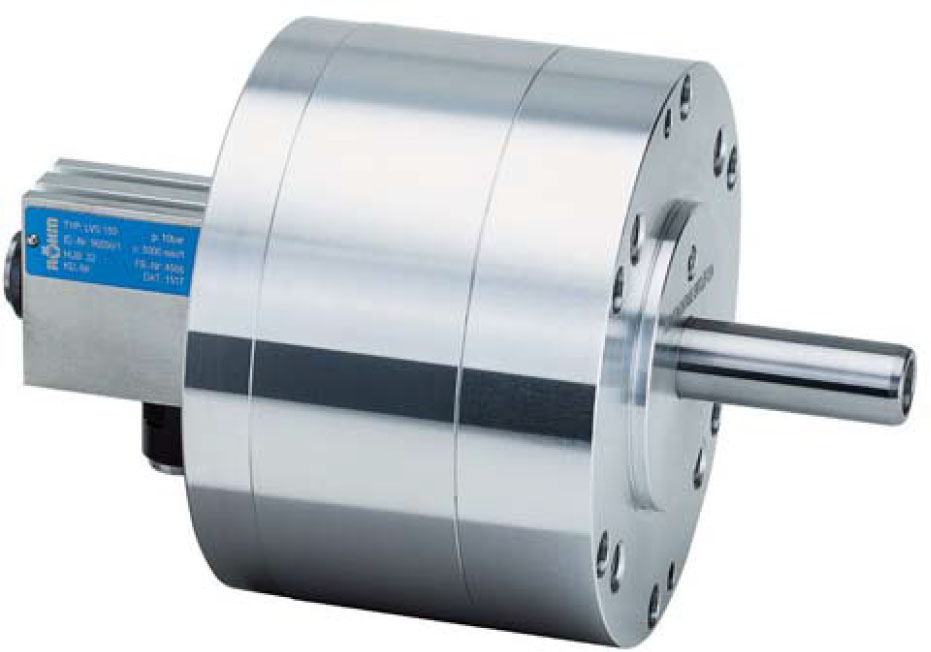

Clamping cylinders without through-hole for actuation pressure 2-10 bar.

CUSTOMER BENEFITS

• Operational safety thanks to standard safety mechanism, guaranteed even if there is a pressure drop during spindle rotation
• Flexible use thanks to possible horizontal or vertical installation position

TECHNICAL FEATURES

• Stroke control by means of inductive proximity system or linear path measuring system F90, fastened on the machine side (stroke control system not included in the scope of delivery)
• The maximum permissible speed can be run in continuous operation (100% ED)
• Can also be actuated during rotation
• On request with central media feed-through
