APPLICATION
Synthetic gripper for easy, sensitive workpieces with complex geometries.
TYPE

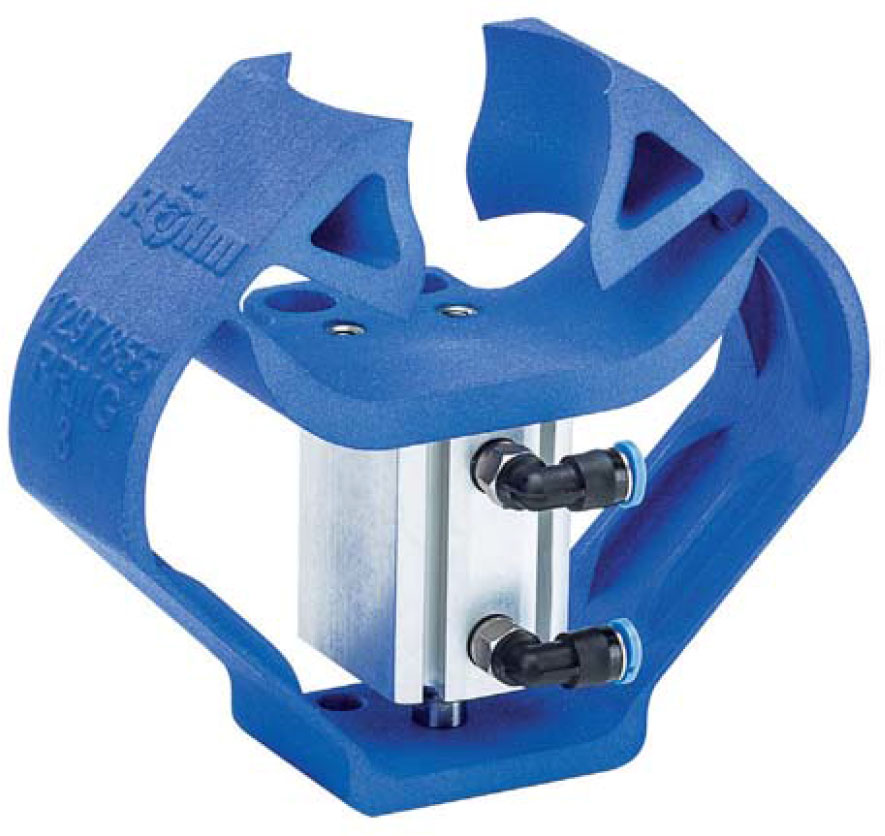

Synthetic gripper RRMG - customized and perfectly adapted jaws on the form of the workpiece.
CUSTOMER BENEFITS
- Part speci!c unique gripper for sensitive workpieces with complex geometries
- FEM optimized structure with 30 % higher clamping force
- Customized and perfectly adapted to the workpiece using the 3D-model
- Application speci!c design of the "ange for maximum "exibility
- Up to 16 million gripping cycles without maintenance or wear and tear
TECHNICAL FEATURES
- Synthetically built by selective laser sinthering for short delivery times
- Especially robust and durable material polyamid with FEM-optimized structure
- Optional position monitoring by installable standard sensors
- Position monitoring by magnetic sensors possible
- Further designs and sizes on request (e.g. double gripper, internal gripper, etc.)
|
