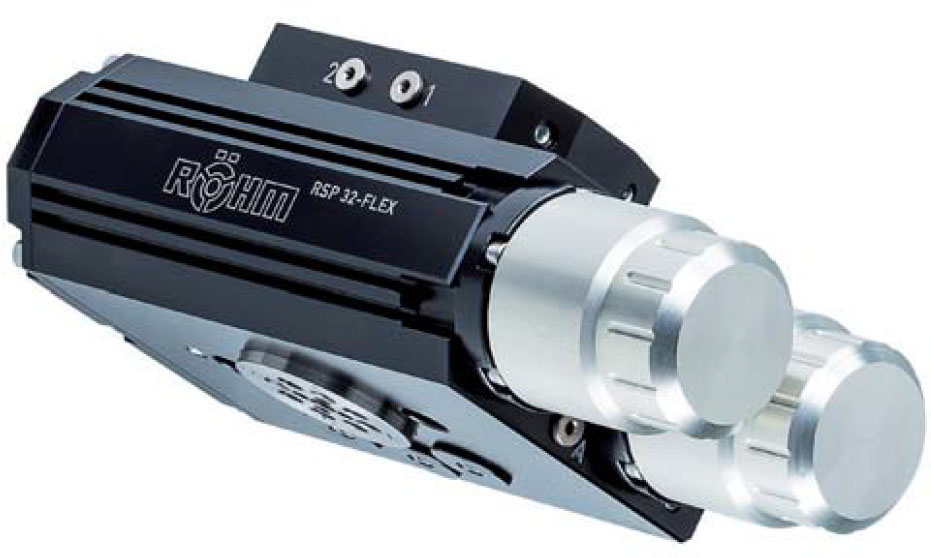

Swivel unit with high torque and compact design.
Flexibly adjustable hardness of the shock absorbers.
Realise two damping ranges, “hard” and “soft” with one swivel unit!
- Uniform damping in the end positions
- Fine adjustment of the dampers at the end position settings
- Optimal bearing support of the rotary plate for several million cycles
- Energy supply possible by means of screw connection or via hoseless direct connection
- Can be used in all positions - e.g. vertical, suspended, horizontal
- Body made of high-strength, hard-coated aluminum
- Pinion shaft and rack made of hardened steel
- End position can be in"nitely variably adjusted ± 3° or ± 90°
- Optional inductive and magnetic position sensors
- Up to 8-fold #uid feeder
- Up to 9-fold cable feed-through
